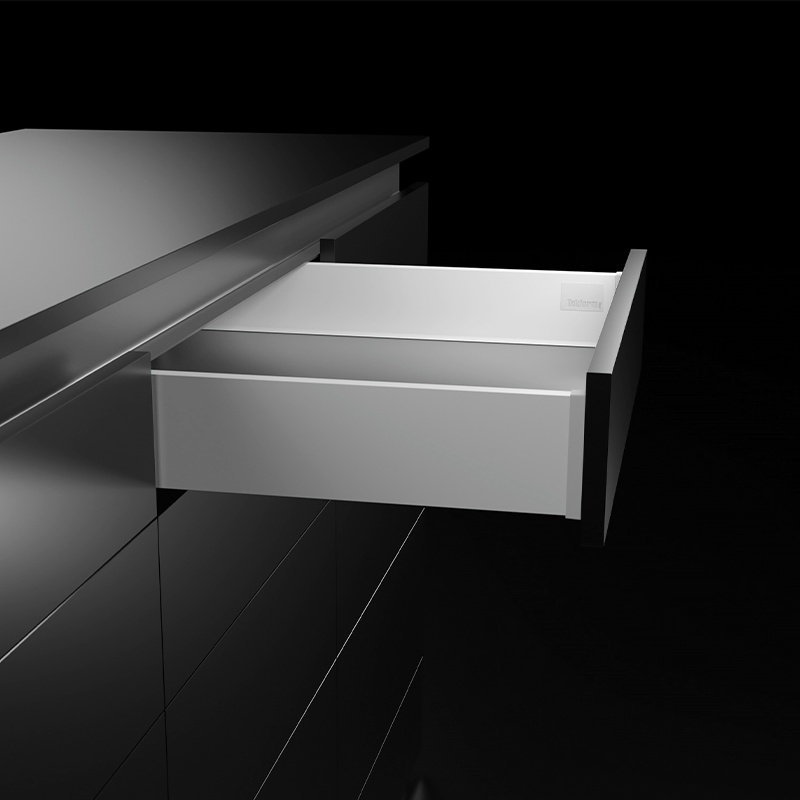

NEW Slimline+ Drawer DW70
:::
Quantity:
- Narrow sides for a sleek look and efficient utilisation of drawer space
- Tilt, side and height adjustment located at the front of the drawer for easy access
- Native Tacto 2.0 Push to Open compatibility for an an-in-one drawer system
- Integrated Titus ART 'Confident Close' adaptive damping system
- Full extension 40kg runners
- Two colour options
- Titus 'EasyFix' connectors included
- Enhanced installation and adjustment
- Quality tested and certified by FIRA Level H and CATAS
- Screw-Fix Front Brackets available
- Screws not included
- One set consists of: Drawer sides (2 pcs), Drawer runner (2 pcs), EasyFix front connectors (2 pcs), Rear connectors (2 pcs) & Decorative covers (2 pcs)
- Height: 70
- Closing: Integrated soft close
- Extension: Full Extension
- Weight capacity: 40kg
- Height adjustment: +/-1.5 mm
- Side adjustment: +/-1.5mm
- Minimal required height space (mm): 115
- Wooden back panel thickness (mm): 16
- Wooden bottom panel thickness (mm): 16
Slimline+ Installation Guide
DownloadProduct Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Front connector type | Unit of Measure | Finish | Min. Order Qty | Length (mm) | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|---|
| 656.8T27.150.00 | EasyFix | Each | White | 1 | 270 | $ 60.44 | In stock | ||
| 656.8T27.185.00 | EasyFix | Each | Anthracite | 1 | 270 | $ 60.44 | In stock | ||
| 656.8T35.185.00 | EasyFix | Each | Anthracite | 1 | 350 | $ 64.31 | In stock | ||
| 656.8T35.150.00 | EasyFix | Each | White | 1 | 350 | $ 64.31 | In stock | ||
| 656.8T40.185.00 | EasyFix | Each | Anthracite | 1 | 400 | $ 66.30 | In stock | ||
| 656.8T40.150.00 | EasyFix | Each | White | 1 | 400 | $ 66.30 | In stock | ||
| 656.8T45.185.00 | EasyFix | Each | Anthracite | 1 | 450 | $ 68.59 | In stock | ||
| 656.8T45.150.00 | EasyFix | Each | White | 1 | 450 | $ 68.59 | In stock | ||
| 656.8T50.185.00 | EasyFix | Each | Anthracite | 1 | 550 | $ 71.71 | In stock | ||
| 656.8T50.150.00 | EasyFix | Each | White | 1 | 150 | $ 71.71 | In stock | ||
| 656.8T55.185.00 | EasyFix | Each | White | 1 | 270 | $ 73.69 | In stock | ||
| 656.8T55.150.00 | EasyFix | Each | White | 1 | 270 | $ 73.69 | In stock |
