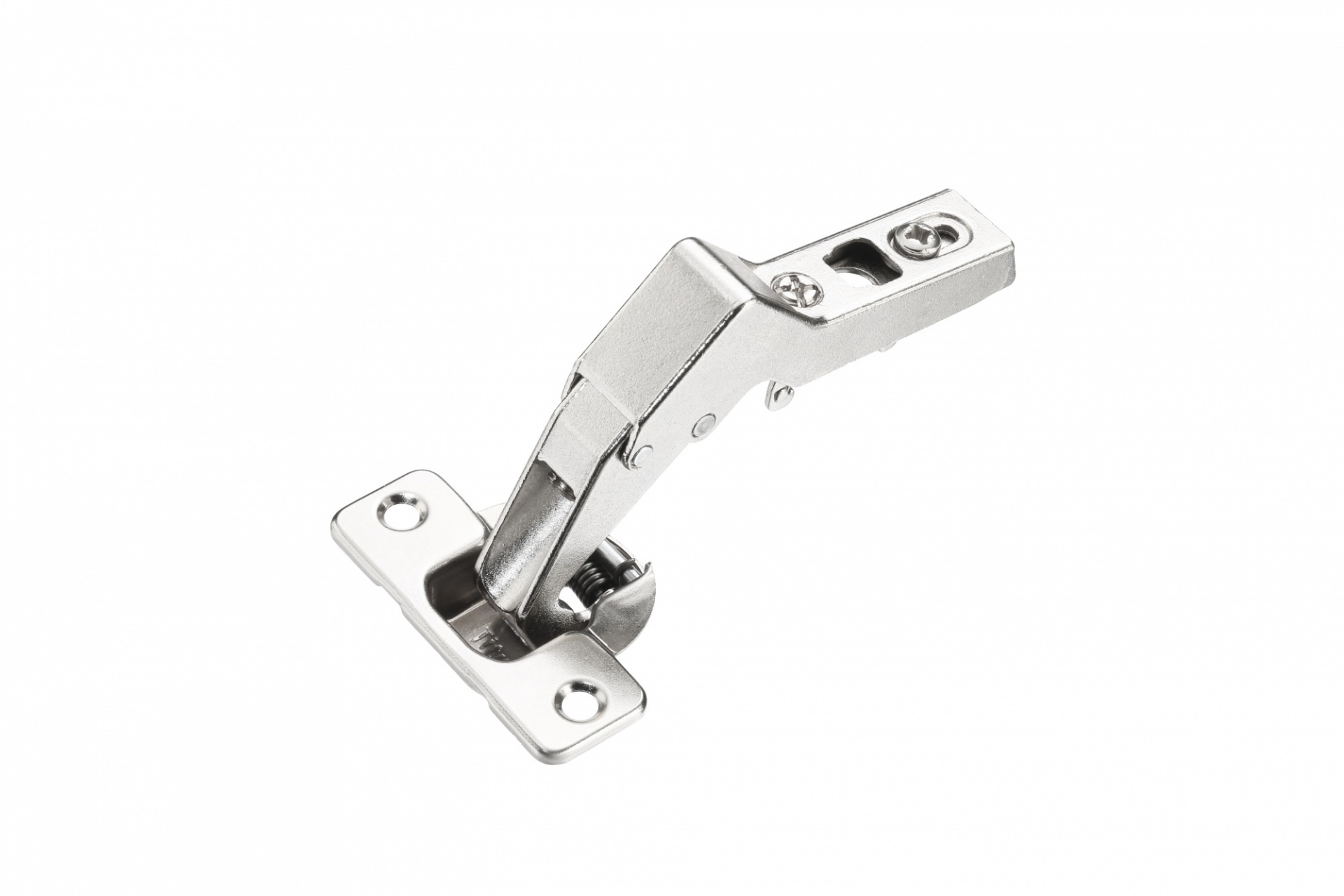

S-type Pie-cut Corner Cabinet
::
Quantity:
- For wooden doors
- Standard drilling for hinge and mounting plate
- Hinge integrated adjustment
- Cranking (mm): Corner
- Depth adjustment: +5 / -1.5 mm
- Drilling depth (mm): 11.5 mm
- Hinge cup diameter: 35 mm
- Height adjustment: +2 / -2 mm
- Mounting: Snap-on
- Material: Steel
- Side adjustment: +3 / -1 mm
- Opening angle (°): 110
Product Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Cup type | Unit of measure | Min. Qty. | Interaxis (mm) | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|
| 248.0U21.050 | Screw-on ready | Each | 1 | 45 / 9.5 | $ 11.23 | Back order | ||
| 248.0U16.050 | Screw-on ready | Each | 1 | 48 / 6 | $ 11.72 | In stock | ||
| 248.0U22.050 | Machine insertion ready | Each | 1 | 45 / 9.5 | $ 11.46 | In stock | ||
| 248.0Z20.050 | Machine insertion ready | Each | 1 | 52 / 5.5 | $ 11.59 | Back order |
